Turbulenta
Effective aeration with 60-70 % lower energy consumption and high disolved oxygen content Used for Wastewater treatment, Ponds & lakes, Aqua culture & RAS technology.
60-70% lower energy consumption.
CSS manufactures Turbulenta, equipment that effectively oxygenates and produces beneficial oxygen with up to 60%-70% lower energy consumption for our wastewater treatment plants, fish farms, purification ponds, and more.
- High Oxygen Transfer Rate
- Suited For High Pollution Levels
- Easy Installation,
- Low Energy Consumption
- Low Maintenance Cost
Applicable industries:
- Pulp And Paper Dams
- Water And Sewage Plants
- Food And Beverage Plants
- And Various Others As Mining
Easy
installation
Efficient
oxygenation
60% - 70%
more cost effective
Easy installation
Our technology is easy to integrate into existing facilities and allows for the retention of existing equipment. It can be easily tested in existing installations.
Plunging jet technology is a method for introducing air into water or another liquid by allowing a water jet to fall onto a water surface, creating strong agitation and efficient gas transfer. It is commonly used for oxygenation of water in treatment plants, aquaculture, or other processes where aeration is important.
- The Largest Unit Can Inject Disolved Up To 80 Kg Oxygen.
- Our Systems Can Easily Combined To Meet The Need For Disolved Oxygen In Your Basin.
- Oxygen Is From The Air, Not From Any Production Unit.
How it works in brief
A water jet is expelled at high speed from a nozzle and “plunges” into a water volume.
When the jet strikes the surface below, turbulence is created and water particles mix intensively with the air.
The high turbulence provides a large contact area between water and air, making oxygen transfer highly efficient.
The technology is simple, energy-efficient, and requires no moving parts below the water surface.
Advantages of plunging jet technology:
- Efficient oxygenation and gas exchange
- Low operating and maintenance costs
- Can also be used for mixing and dissolving
SPECIFICATIONS

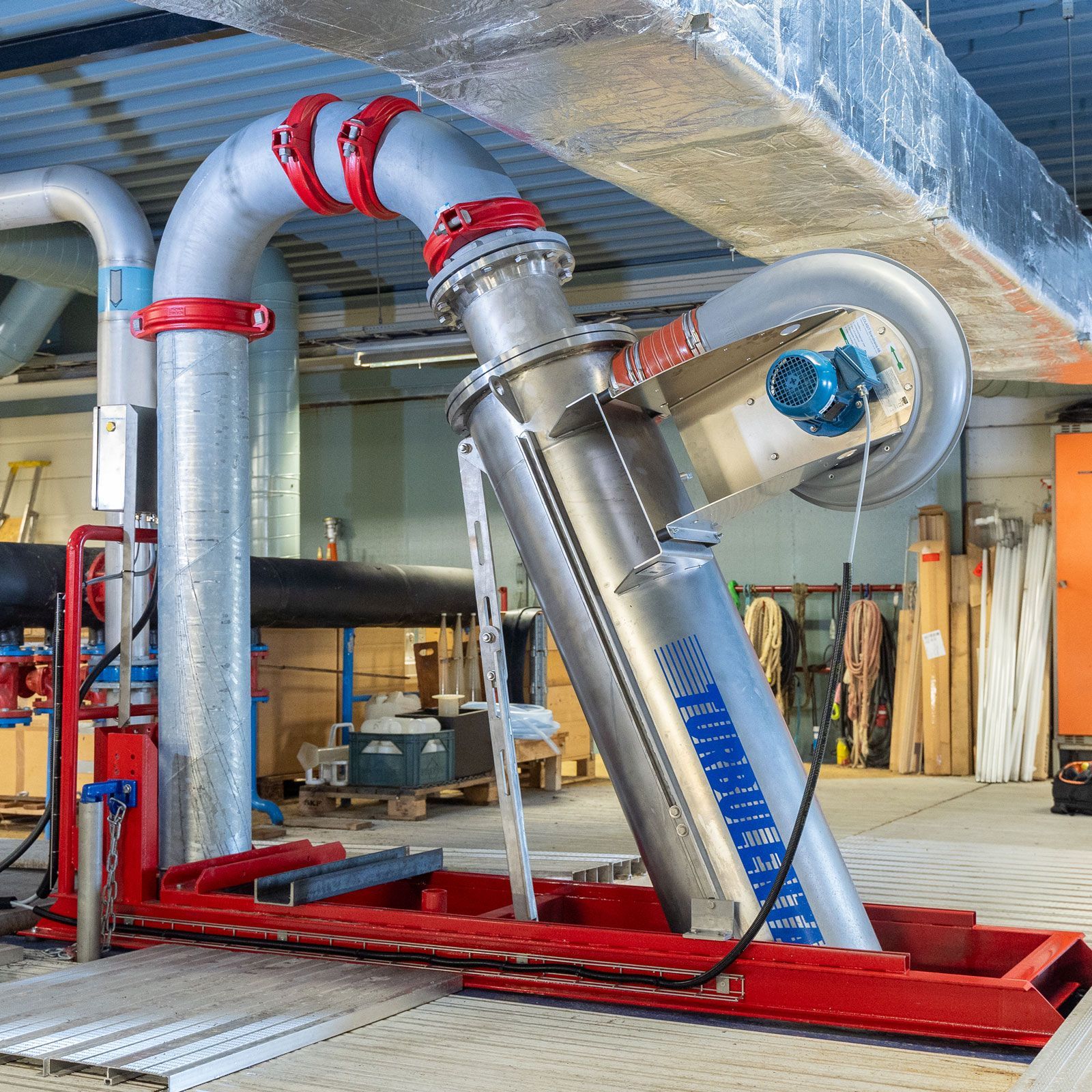

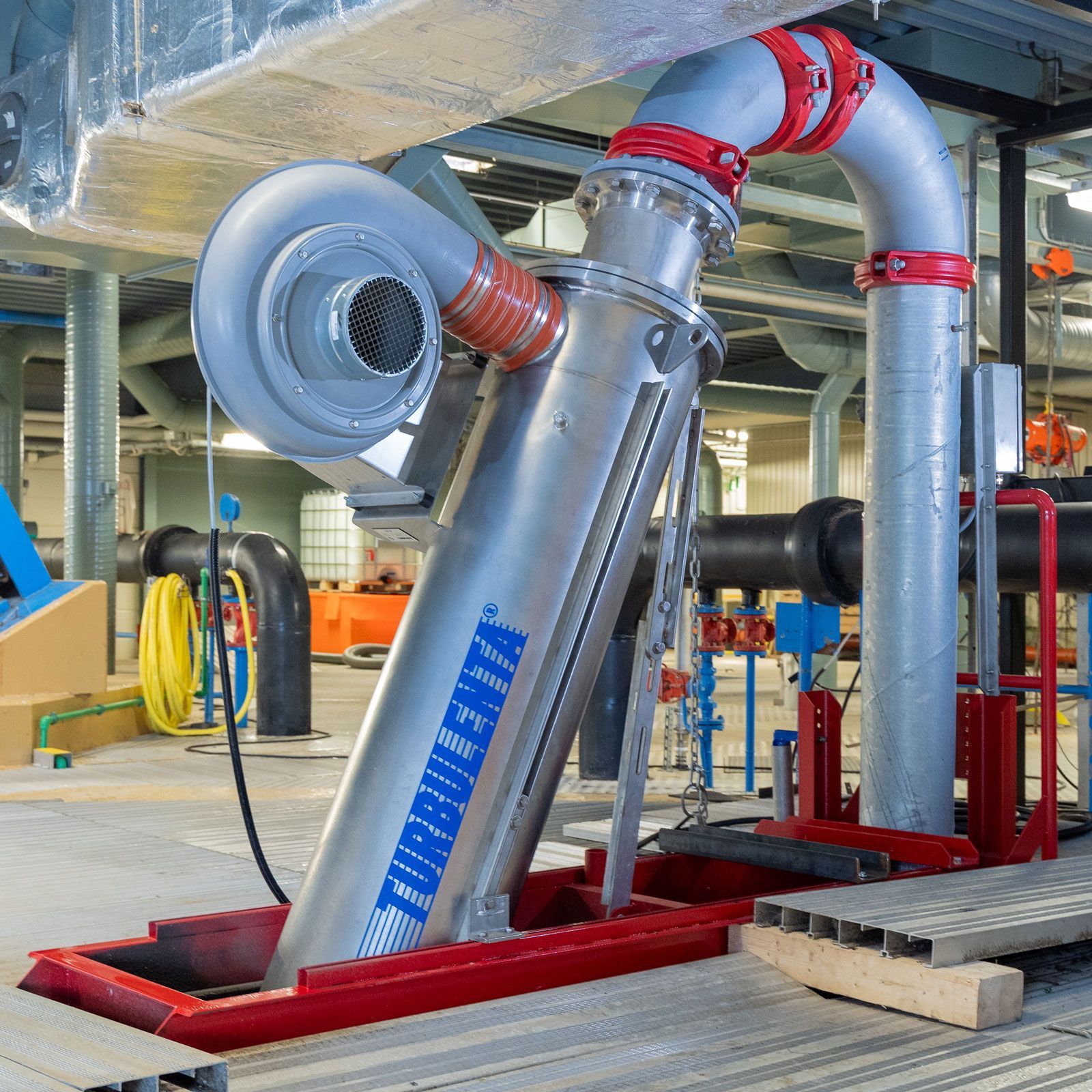

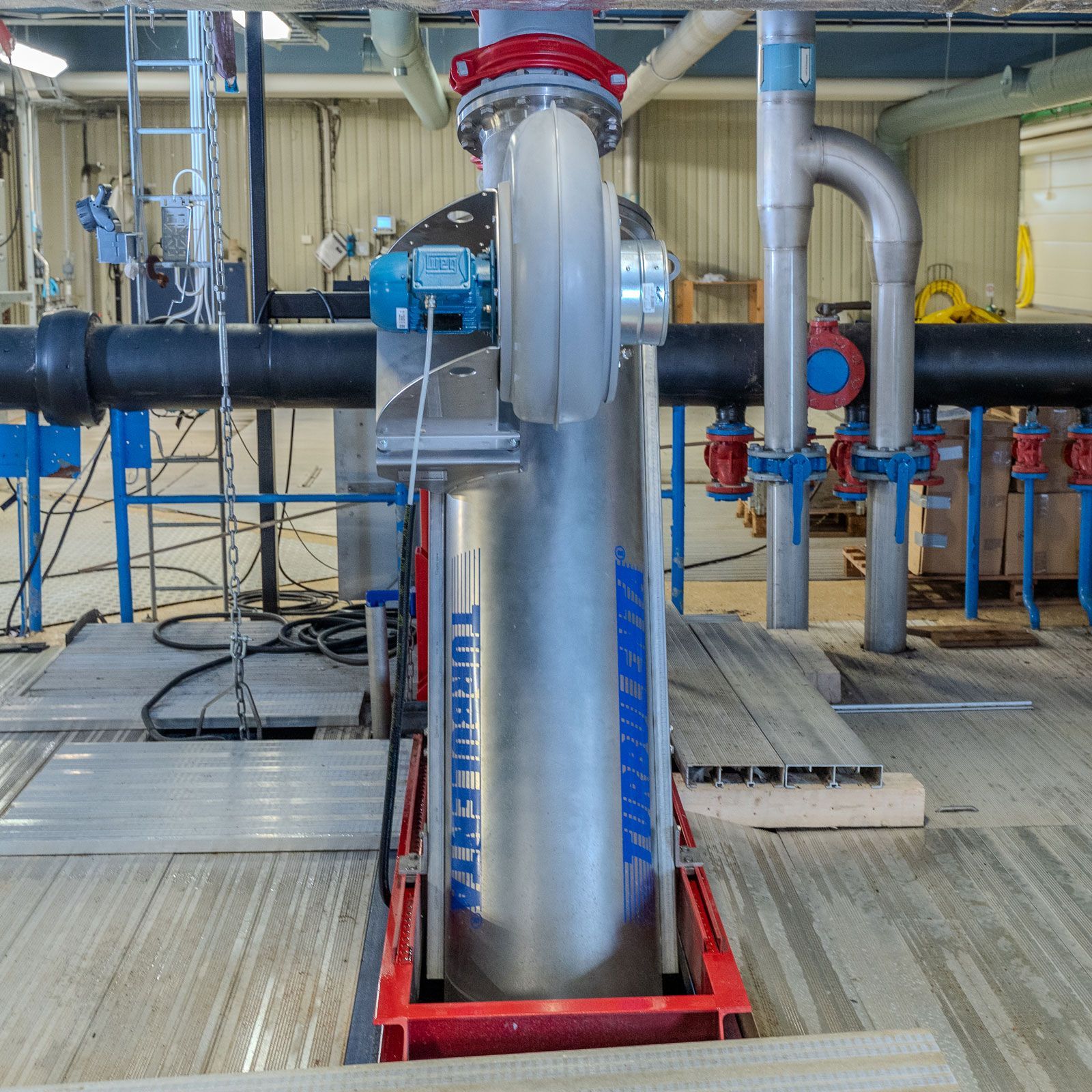

Plunging Jet Aeration size PJA 40
- HIGH OXYGEN TRANSFFER RATE
- FOR HIGH POLLUTION LEVELS
- EASY INSTALLATION & NO MAINTENANCE
- INDUSTRIAL USE
- Stainless steel
- Steel housing capaciy 42kgO2/h
- Pump ”Flygt” size 22 kW Type CP 3201
- Length 6000mm Pipe flange 250DIN mm
- Sorption efficiency kg-O2/kwh 2.5 (energy efficiency)
- Optimum water depth 0.5-12 meter
- Max oxygen transfer intensity 80 kg/O2/m3/h
SPECIAL FEATURES:
No. spray/ mist
No clogging
No deposits
Mobile version
